Installing / Removal of a CPU Heatsink & Fan

With the MOTHERBOARD INSTALLED IN THE CHASSIS, place the fan-heatsink onto the motherboard, aligning the fasteners through the holes. It is important to align the fasterners through the holes properly or you risk damaging the bottom of the fasteners. Also be careful not to damage the thermal interface The interconnections that allow a device, a program, or a person to interact. Hardware interfaces are the cables that connect the device to its power source and to other devices. Software interfaces allow the program to communicate with other programs (such as the operating system), and user interfaces allow the user to communicate with the program (e.g., via mouse, menu commands, icons, voice commands, etc.). material attached to the bottom of the fan heatsink.

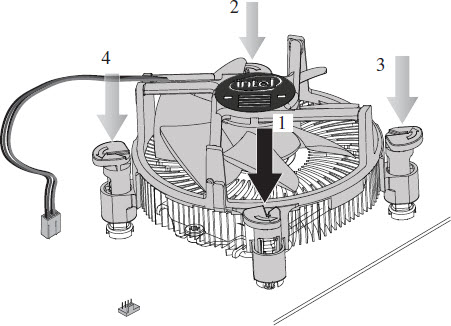

Push down on the top of each of the fasteners in an alternate pattern, as shown below, while holding the fan heat sink in place. You should hear a “click” when pushing down each fastener. Check that all four fasteners are securely attached by gently pulling up on each fastener. Having an unattached fastener will prevent a good seal between the fan-heatsink and processor and could result in unreliable operation of the processor.

Connect the processor 4-wire fan cable connector to the motherboard 4-pin CPU fan header.
