Removing the Case Cover

Removing the case cover from your Spirit computer requires no tools.

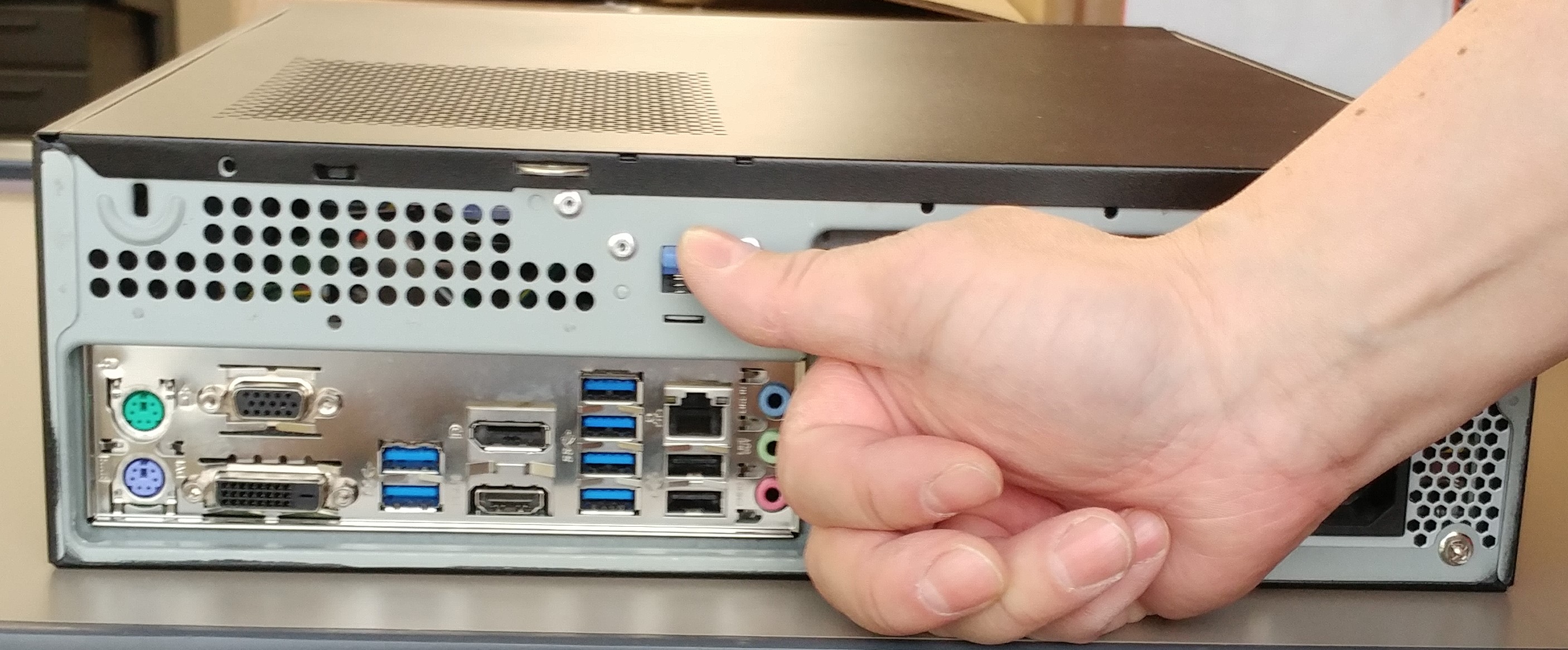

  1. Press down on the release lever.

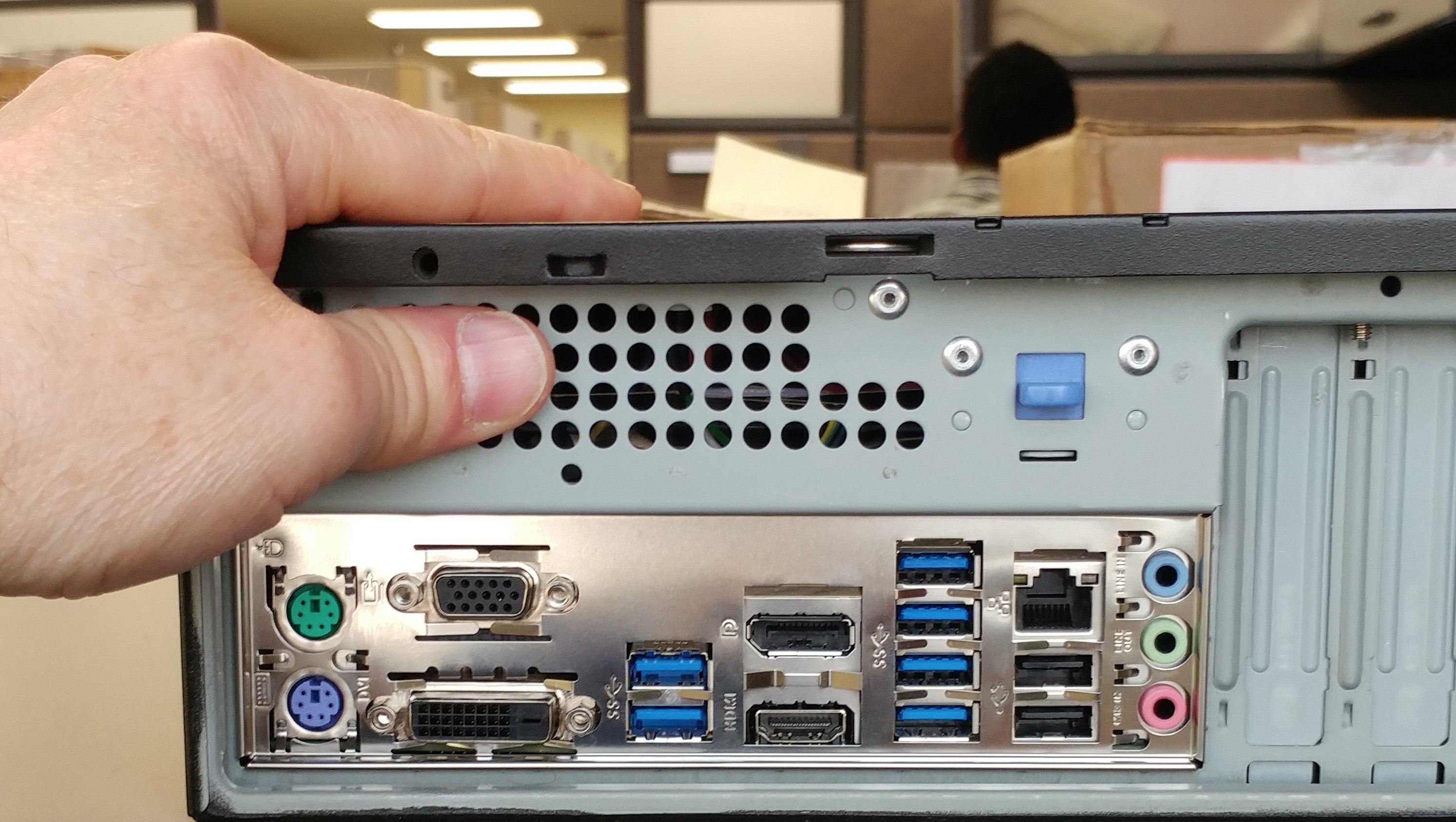

  1. Slide the cover back towards the back.

  1. To remove the front faceplate pull up the three tabs (see photo) and move them toward yourself.

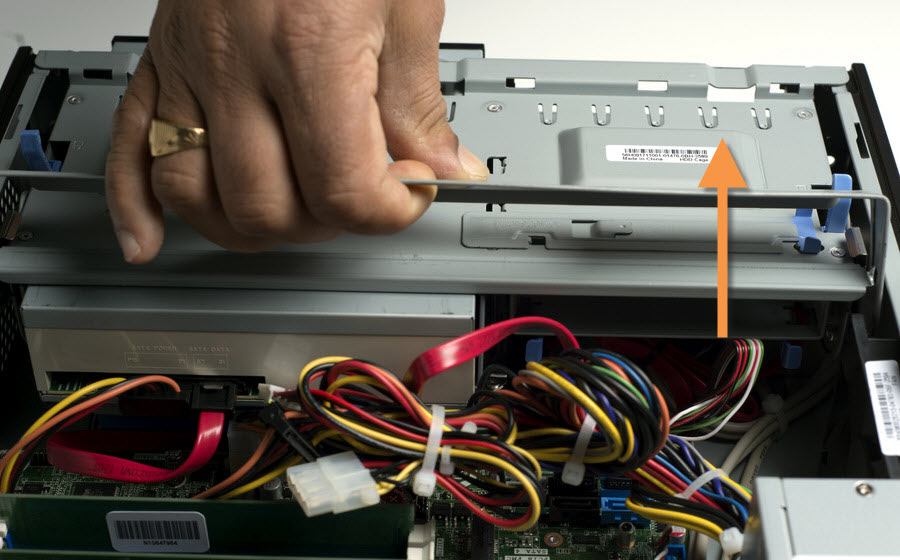

  1. For better visibility, remove the drive cage by pulling it up and toward yourself as shown in the picture below. Two blue thumb screws must first be removed at the front of the case.
