It is not necessary to run setup after replacing the hard drive. The system will auto detect the changed configuration.
|
|
 |
|
Open the computer case and locate the hard drive. The hard drive is actually an M.2 Solid State Drive (SSD).

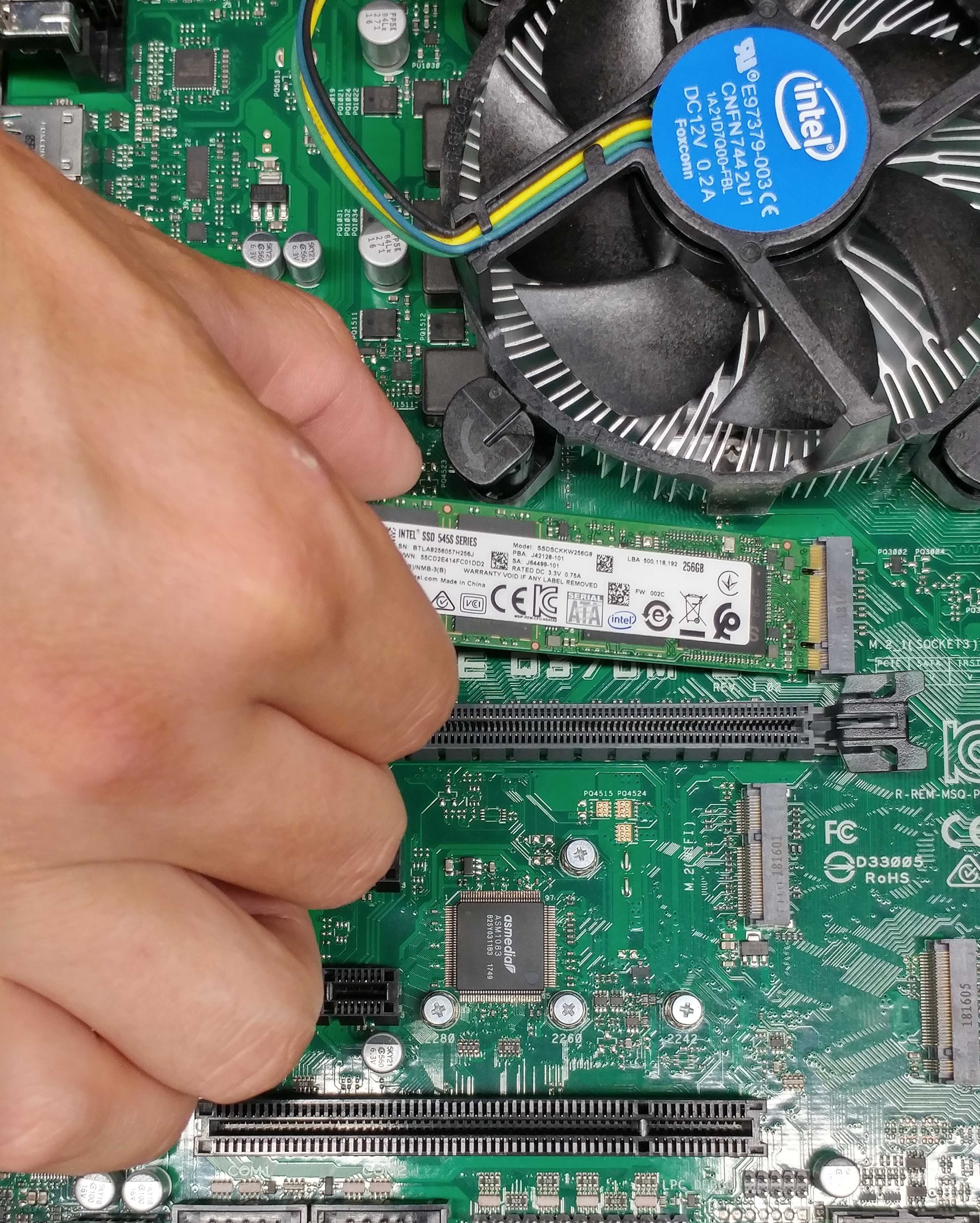

Step 1 - Insert the M.2 card firmly into the M.2 slot ensuring the pins and notches align correctly (parallel to the motherboard). Please note that the motherboard has two M.2 slots available for storage (B keyed card compatible) and one M.2 slot for WiFi, Bluetooth or cellular cards (E keyed card compatible). SSD's must be inserted in one of the two B keyed slots.

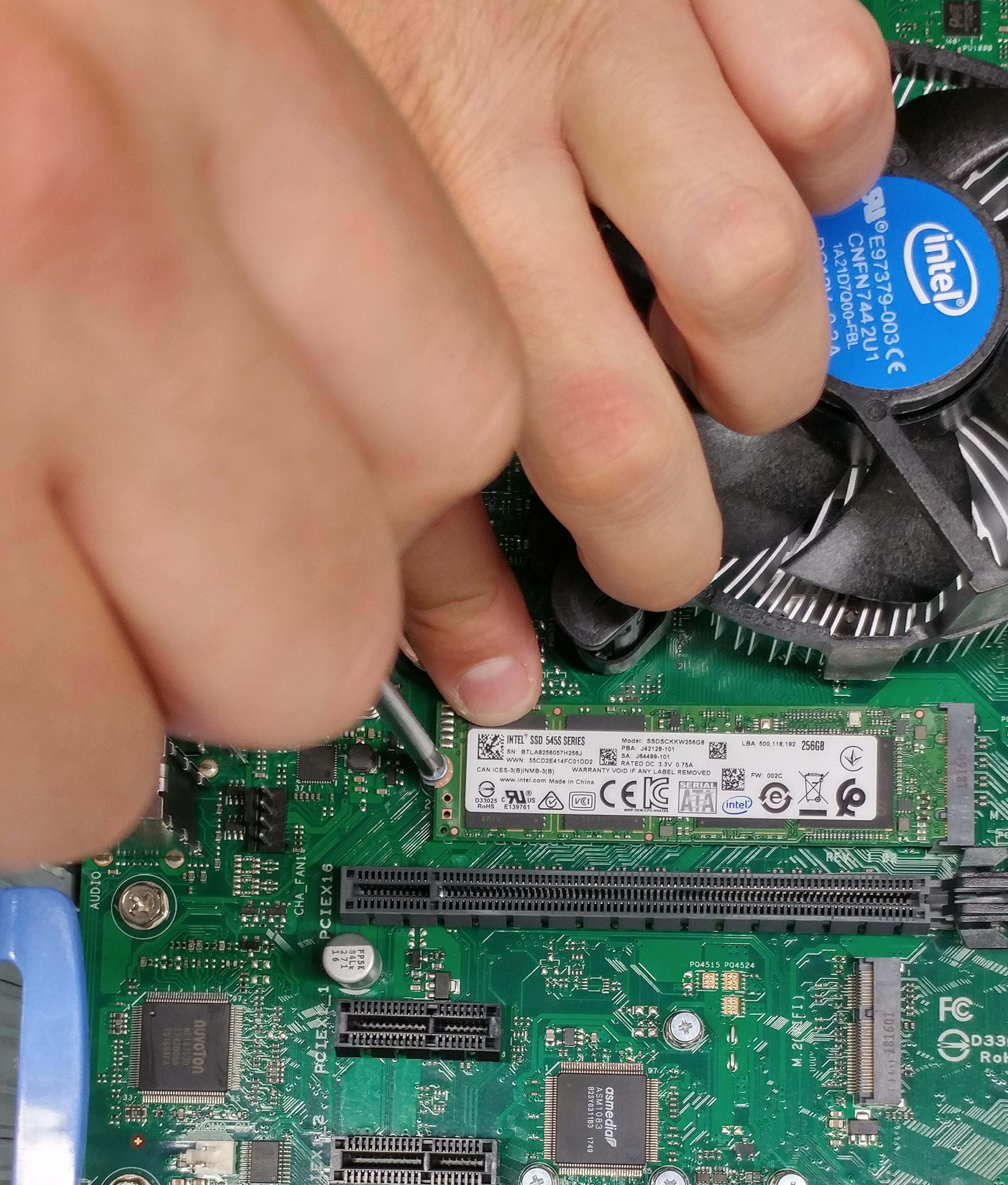

Step 2 - Using the screw that accompanies the replacement SSD, screw the non-keyed end of the M.2 card into the motherboard hole that aligns with the hole in the M.2 card.
Step 1 |
Step 2 |
 |
 |
Hard drives are precision instruments and should be handled with care during unpacking and installation; they can be damaged by rough handling, shock, vibration, or electrostatic discharge (ESD). Be aware of the following precautions when handling your hard drive .
Do not unpack your hard drive until you are ready to install it.
Your hard drive is packaged in a static shielding bag. Use this bag to place your hard drive on after unpacking.
Save the packing materials in case you need to return your hard drive.
Articles of clothing generate static electricity. Do not allow clothing to come in direct contact with the hard drive or circuit board components.
Handle the hard drive by the sides only. Avoid touching the circuit board components.
Do not drop or knock the hard drive.
Do not stack hard drives or stand your hard drive on its edge.
