System Memory Overview

The motherboard comes with four Double Data Rate 4 (DDR4) Dual Inline Memory Temporary storage for information, including applications and documents. The information must be stored to a permanent device, such as a hard disc or CD-ROM before the power is turned off, or the information will be lost. Computer memory is measured in terms of the amount of information it can store, commonly in megabytes or gigabytes. Modules (DIMM) sockets. A DDR4 module has the same physical dimensions as a DDR3 DIMM but is notched differently to prevent installation on a DDR3 DIMM socket. DDR4 modules are developed for better performance.

According to the Intel CPU specifications, DIMM voltage below 1.35 V is recommended to protect the processor.

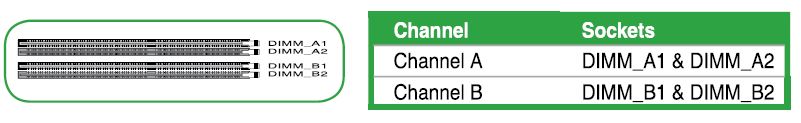

This diagram illustrates the location of the DDR4 DIMM sockets:
